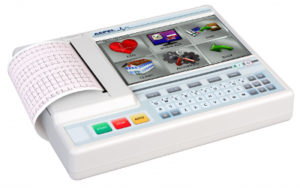

Grey 7

• Channels: 3/6/12
• Operating mode: automatic, manual
• Printout: 3/6/12 channels with interpretation, direct A4 format printout with PCL5/6 printer
• Display: 7” color TFT display, resolution 800×480 pixels
• Automatic interpretation in accordance with EN60601-2-51
• Viewing the recorded cardiogram and interpretation on the analyzer screen
• Thermoactive roll paper 112mm wide
• Memory 1000 measurements
• Power supply: 90-250 V, 50/60 Hz and internal with charger (130 measurements)
• Compatibility: USB x 2 – PCL5/6 printer, flash drive or computer. CardioTEKA v.001 computer program, CAT 5 internal network, Spirometer device SPIRO-31
• Pacemaker peak detection
• Heartbeats reflected as an audio signal
• Sensitivity: 2.5/5/10/20 mm/mV
• Speed: 5/10/25/50 mm/s
• Weight: 1.30kg
• Dimensions: 25.8x20x5cm

Included accessories:

Patient cable

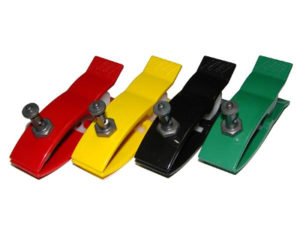

Electrodes suction cup 6pcs and clamp 4pcs

ECG Gel 250g

ECG paper 25m 1pc

Network cable and power cable
